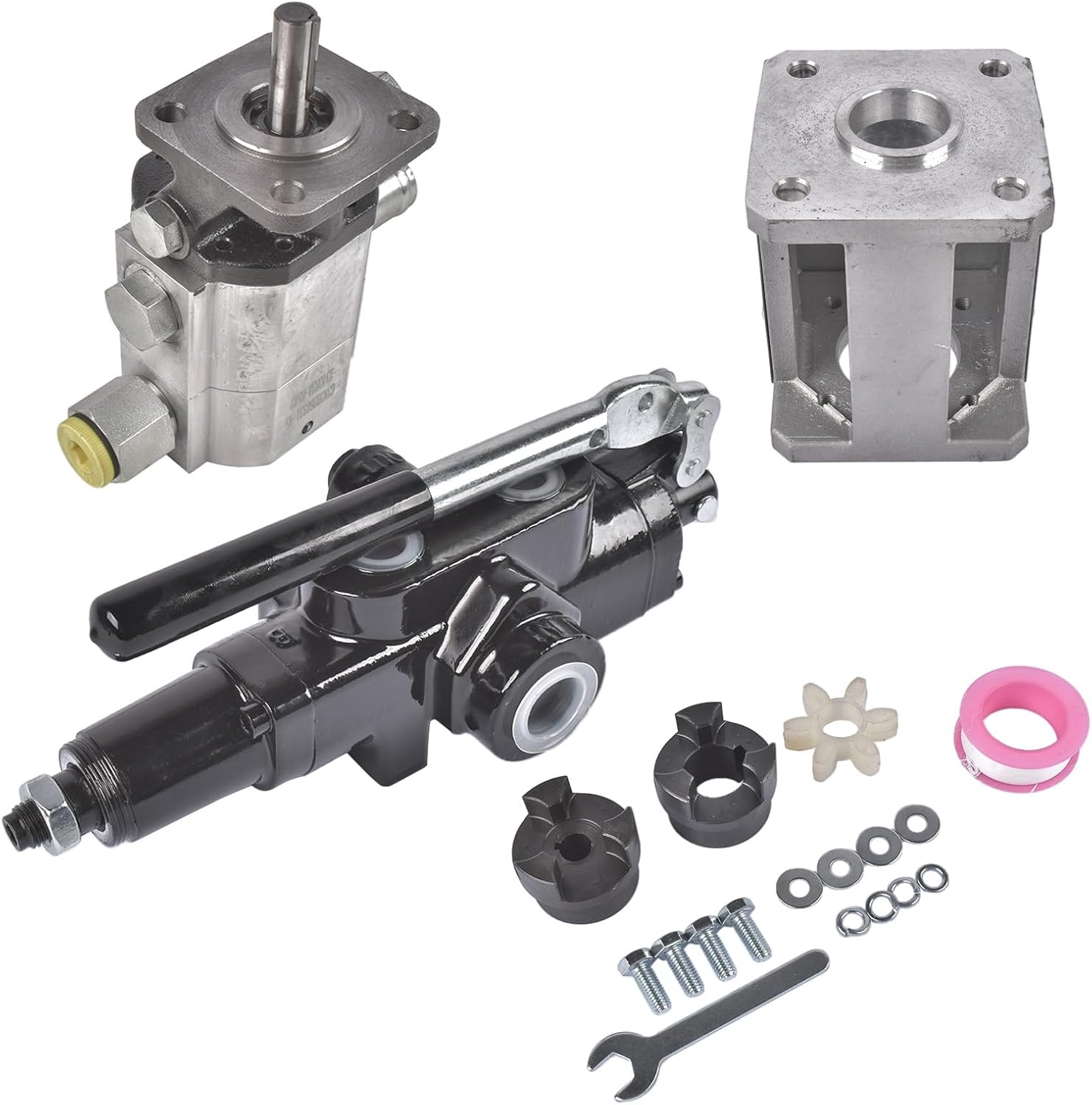

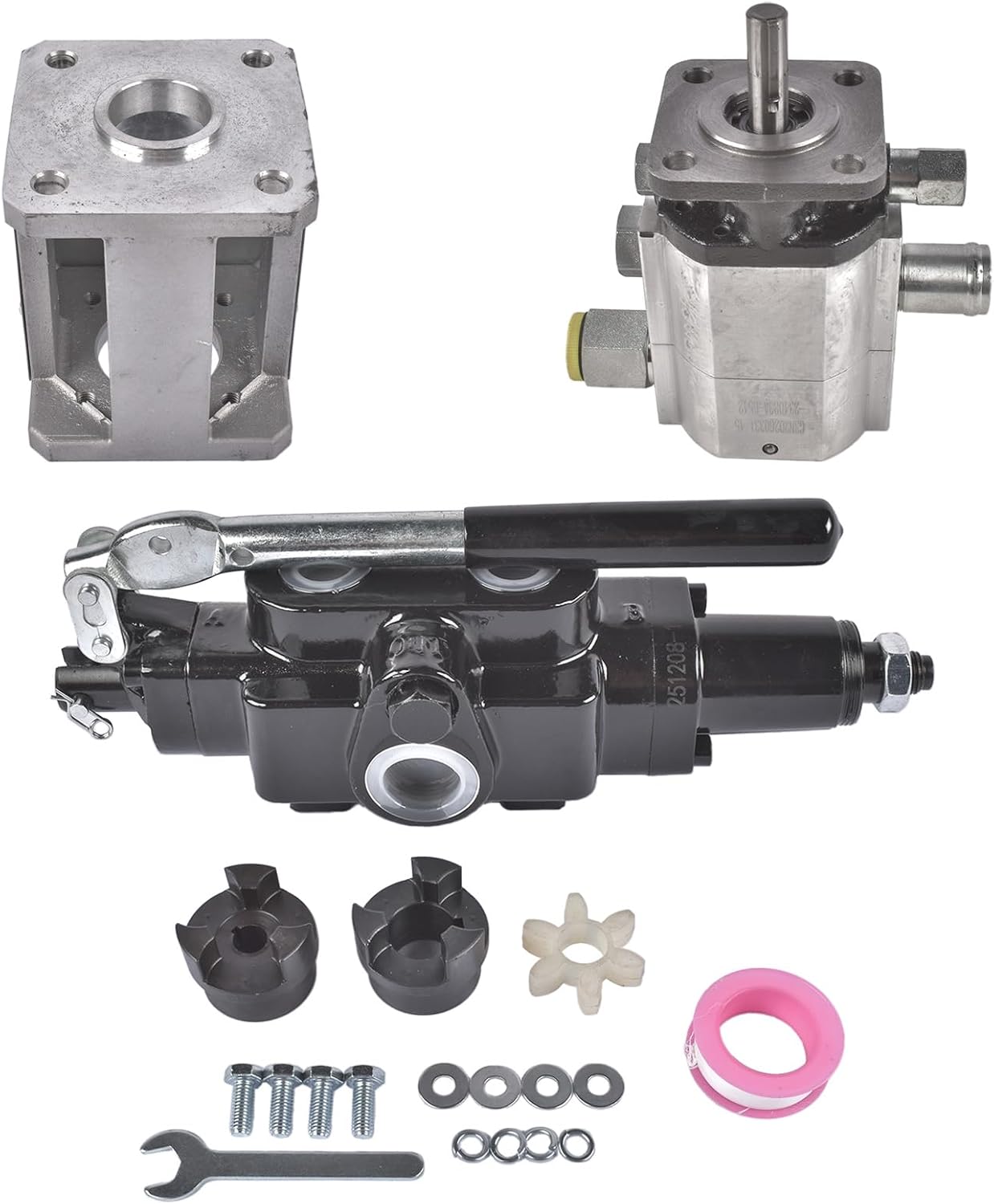

Log Splitter Assembly Kit, 16 GPM Hydraulic Pump, A7 Auto Return Valve, Mounting Bracket, Coupler for 1" Engine Crankshaft, Hardware Bolts

-Specifications This valve is a 2-way operation Log Splitter valve- Direction 1: Actuate lever by hand, release it and it returns to neutral.- Direction 2: Actuate lever by hand, release it and it stays in the actuated position (active) until the hydraulic cylinder bottoms out (or otherwise senses a spike in hydraulic pressure), at which time the detent will kick the lever back to the neutral position (inactive)- Single spool, Open center.- Max pressure rating: 4000 psi.- Relief valve set at 3100psi but is adjustable between 1000 psi and 4000 psi - Working ports ½”NPT. - In/Out ports ¾” NPT - Detent Pressure set at 700 psi but is adjustable. (Detent accessed by removing end cap) - Replacement for SpeeCo, MTD, Brave, Swisher, and others, but can also be used for any DIY hydraulic project-Package IncludesAs Pics Shown

• High Flow Rate: New hydraulic log splitter pump delivers 16 GPM at 3600 RPM. First stage: 13 GPM @ 650 PSI, second stage: 3 GPM @ 2500 PSI.
• Standard Ports & Shaft: Shaft diameter ½”. Inlet port 1”, outlet port ½” NPT.
• Compact Dimensions: Overall length 7-1/4” with shaft, 5-5/8” without shaft. Body width 3”, mounting surface width 3-3/8”.
• Engine Requirement: Minimum 8 HP or larger gas engine, direct drive only, horizontal shaft (can be mounted vertically or horizontally).
• System Compatibility: For use with open center hydraulic systems only.
